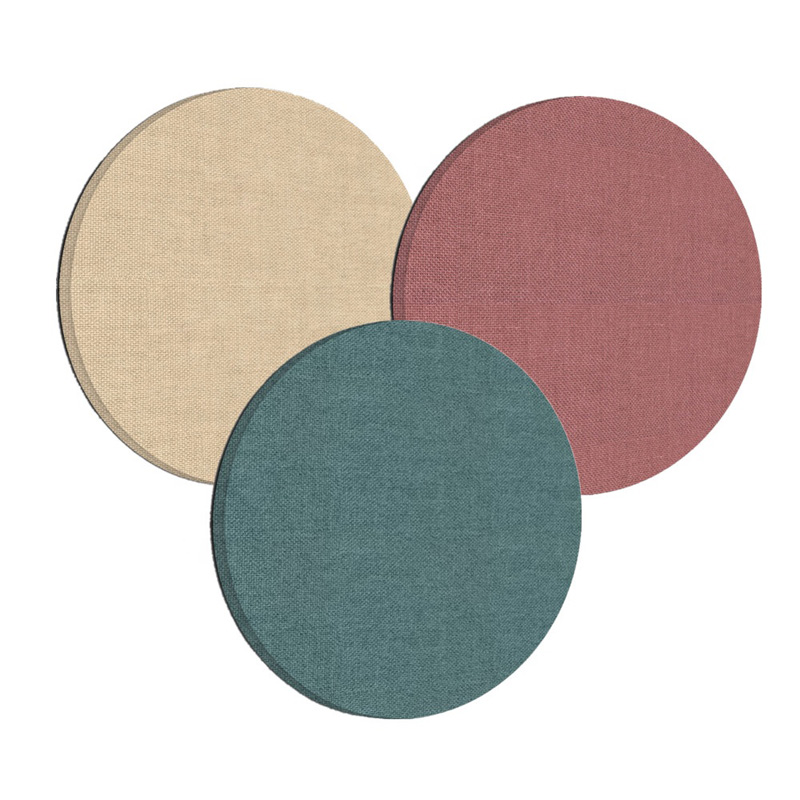

A step-by-step guide to help you make a round acoustic fabric-wrapped panel

2023-12-25

Creating a round acoustic fabric-wrapped panel involves adapting the construction process to accommodate the circular shape. Here's a step-by-step guide to help you make a round acoustic fabric-wrapped panel:

Materials Needed:

1. Acoustic Core Material:

  - Choose a circular acoustic core material like dense fiberglass or acoustic foam. You may need to custom cut the material to fit the desired size.

2. Circular Frame:

  - Plywood or MDF can be used to create a circular frame. You'll need to cut the frame to match the size of the acoustic core.

3. Fabric:

  - Select an acoustic fabric suitable for wrapping around a circular panel. Ensure it has enough stretch to cover the curved surface.

4. Adhesive:

  - High-quality spray adhesive for attaching the fabric to the panel.

5. Mounting Hardware:

  - Consider the type of mounting hardware suitable for a circular panel, such as a French cleat or a specialized hanging system.

6. Tools:

  - Saw or jigsaw for cutting the circular frame.

  - Staple gun for attaching the fabric.

  - Measuring tape and ruler.

  - Utility knife or scissors.

Steps:

1. Design and Measure:

  - Determine the diameter of the round panel based on your acoustic needs and available wall space.

  - Cut a circular frame from plywood or MDF to match the desired size.

2. Cut the Acoustic Core:

  - If using a dense acoustic core material, cut it to match the circular frame's diameter. Ensure a snug fit within the frame.

3. Attach the Core to the Frame:

  - Apply adhesive to the circular frame and press the acoustic core into place.

  - Allow the adhesive to dry completely.

4. Wrap the Panel with Fabric:

  - Lay the fabric face down and place the circular panel in the center.

  - Pull the fabric tightly over the panel, starting from one edge.

  - Use a staple gun to secure the fabric to the back of the circular frame.

  - Trim excess fabric as needed.

5. Mounting:

  - Attach a mounting system suitable for a circular panel, such as a French cleat or a specialized hanging system, to the back of the panel.

6. Install:

  - Hang the round acoustic panel on the wall, ensuring it is securely fastened.

Tips:

- Be mindful of the stretch and flexibility of the chosen fabric to accommodate the circular shape without distorting the pattern.

- Consider using a fabric with acoustic properties to enhance sound absorption.

- Test the adhesive on a small area of the fabric before applying it to the entire panel.

- Ensure the panel is securely mounted, especially for larger and heavier circular panels.

Creating a round acoustic fabric-wrapped panel adds a unique aesthetic element while providing acoustic benefits. Adjust the size, fabric choice, and mounting options based on your specific design preferences and the acoustic needs of the space.
