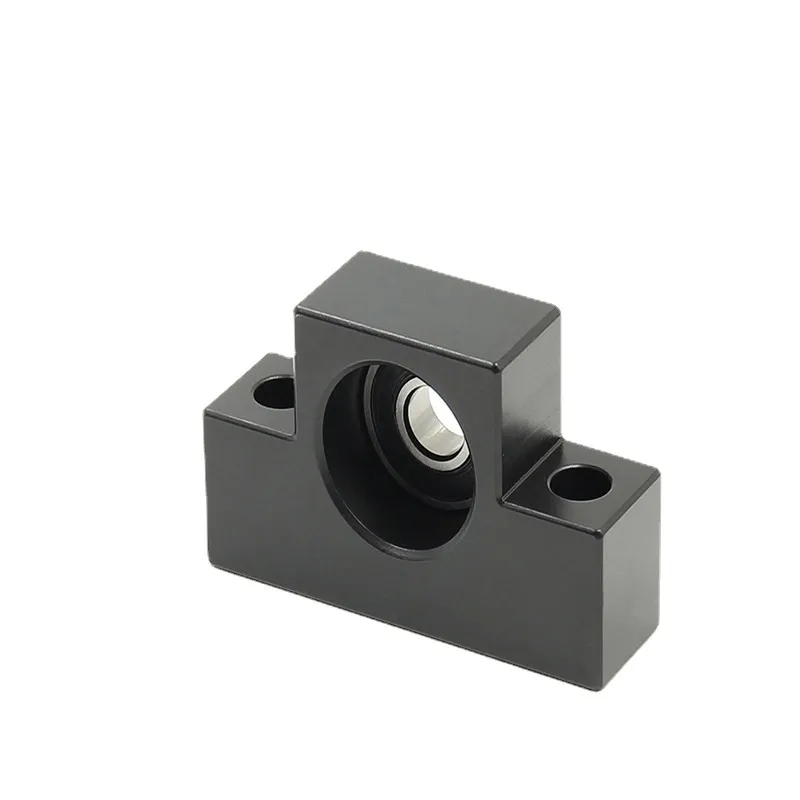

Characteristics of Bearing Pedestals

Bearing pedestals are critical components in various mechanical systems, designed to support and house bearings that facilitate smooth rotation or movement of shafts and other rotating elements. Here’s a detailed overview of their characteristics:

Key Characteristics

1. Material

  - Cast Iron: Commonly used for its strength and durability. It is suitable for heavy-duty applications.

  - Steel: Offers high strength and rigidity, often used in applications requiring additional load capacity.

  - Aluminum: Lightweight and resistant to corrosion, used in applications where weight reduction is important.

  - Composite Materials: Sometimes used for specific applications where enhanced properties are required, such as high resistance to temperature or chemicals.

2. Design

  - Base Plate: Features a flat base for mounting onto a surface, often with bolt holes for secure attachment.

  - Housing: Encases the bearing, providing support and alignment. Designed to accommodate different types of bearings (e.g., pillow block, flanged).

  - Alignment Features: May include alignment slots or adjustable features to ensure proper bearing alignment and performance.

3. Mounting

  - Fixed Mounting: Designed to be mounted on a stationary base, ensuring stability and support for the rotating shaft.

  - Adjustable Mounting: Some pedestals offer adjustability to accommodate alignment and positioning changes.

4. Bearing Compatibility

  - Standard Bearings: Designed to house common bearing types, such as ball bearings or roller bearings.

  - Custom Bearings: Can be made to fit specific or non-standard bearing sizes and configurations.

5. Load Capacity

  - Heavy-Duty: Designed to support high loads and stresses, suitable for industrial and heavy machinery applications.

  - Light-Duty: Used in lighter applications where lower loads and stresses are involved.

6. Protection

  - Seals and Covers: Some pedestals include seals or covers to protect the bearing from contaminants such as dust, moisture, or debris.

  - Lubrication: Features or provisions for lubrication to ensure smooth operation and extend bearing life.

Applications

1. Industrial Machinery: Used in various types of machinery, including conveyor systems, pumps, and compressors.

2. Automotive: Supports bearings in automotive engines, transmissions, and other rotating components.

3. Construction Equipment: Found in equipment such as cranes, excavators, and loaders.

4. Agricultural Machinery: Used in tractors, harvesters, and other farm equipment.

5. HVAC Systems: Supports bearings in fans, blowers, and other HVAC components.

Benefits

1. Stability: Provides stable support and alignment for bearings, ensuring reliable operation of rotating components.

2. Durability: Constructed from robust materials to withstand heavy loads and harsh operating conditions.

3. Ease of Maintenance: Designed for easy access to bearings for maintenance and lubrication.

4. Protection: Offers protection against contaminants and environmental factors, extending the lifespan of the bearing.

Care and Maintenance

1. Inspection: Regularly inspect for signs of wear, damage, or misalignment to ensure proper function and prevent failures.

2. Lubrication: Keep bearings properly lubricated according to manufacturer recommendations.

3. Cleaning: Clean the pedestal and surrounding area to prevent buildup of debris and contaminants.

4. Alignment: Ensure proper alignment of the bearing and shaft to prevent excessive wear and maintain performance.

Popular Types

1. Pillow Block Pedestals: Feature a block-shaped housing with a bearing mounted inside, commonly used in various applications.

2. Flange Mount Pedestals: Have a flange with bolt holes for mounting, suitable for applications requiring stable support and alignment.

3. Take-Up Units: Include provisions for adjusting the position of the bearing to maintain tension in conveyor belts or similar systems.

4. Plummer Blocks: Designed for heavy-duty applications with robust construction to support large bearings and high loads.

Bearing pedestals are essential for maintaining the performance and reliability of rotating machinery. By understanding their characteristics and functions, you can select the right type and ensure proper maintenance for optimal operation.
