Components of Shot Blasting Booth

2024-05-29

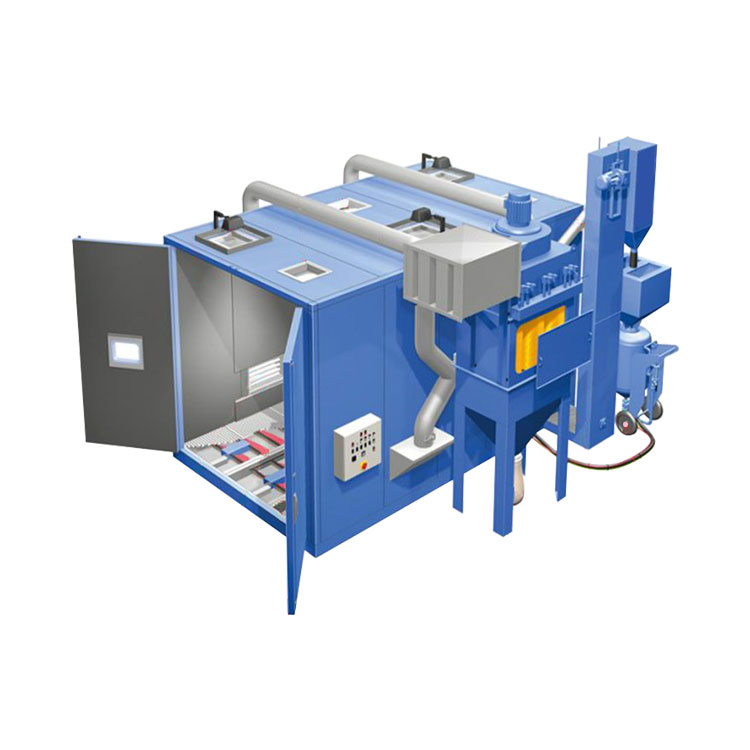

A shot blasting booth, also known as a blast booth or abrasive blasting booth, is a specialized enclosure designed for the cleaning, surface preparation, or finishing of workpieces using abrasive blasting techniques. It provides a controlled environment where abrasive media, such as steel shot, sand, or grit, is propelled at high velocity onto the surface of the workpiece to remove contaminants, scale, rust, or old coatings, and create a desired surface finish. Here's an overview of shot blasting booths, including their features, components, and applications:

Features of Shot Blasting Booth

1. Enclosed Structure: Shot blasting booths are fully enclosed structures designed to contain the abrasive blasting process within a controlled environment. This enclosure helps contain dust, debris, and noise generated during the blasting operation, ensuring safety and environmental compliance.

2. Ventilation System: A ventilation system consisting of exhaust fans and air filtration units is installed to remove dust, fumes, and airborne contaminants generated during the blasting process. Proper ventilation helps maintain air quality and ensures a safe working environment for operators.

3. Abrasive Recovery System: Shot blasting booths are equipped with an abrasive recovery system, typically consisting of a floor-mounted hopper or screw conveyor, which collects and recycles the abrasive media for reuse. This system minimizes waste and reduces operating costs associated with abrasive consumption.

4. Blasting Equipment: The blasting equipment, including blast nozzles, pressure vessels, and abrasive media delivery systems, is installed within the booth to facilitate the abrasive blasting process. Various types of blasting equipment, such as wheel blast machines, air blast cabinets, or hand-held blast guns, may be used depending on the specific application and requirements.

5. Lighting: Adequate lighting is essential for visibility and safety within the shot blasting booth. High-intensity lighting fixtures are installed to illuminate the work area and ensure proper inspection of the workpieces before and after blasting.

6. Control Panel: Shot blasting booths may be equipped with a control panel or operator interface for monitoring and controlling various parameters of the blasting process, such as blast pressure, media flow rate, and conveyor speed. Advanced control systems may offer programmable settings and automation features for improved efficiency and consistency.

7. Accessibility: The design of the shot blasting booth should allow easy access for loading and unloading of workpieces, as well as maintenance and cleaning tasks. Access doors, hatches, and service ports are provided for convenient access to the interior of the booth.

8. Safety Features: Safety features such as interlocks, emergency stop buttons, and personal protective equipment (PPE) are essential to ensure operator safety and compliance with occupational health and safety regulations.

Components of Shot Blasting Booth

1. Enclosure Structure: The main structural components of the shot blasting booth include walls, roof, and floor panels constructed from heavy-duty materials such as steel or reinforced concrete to withstand the abrasive blasting process and contain airborne particles.

2. Abrasive Recovery System: The abrasive recovery system consists of a hopper or screw conveyor located beneath the blasting area, along with associated ductwork, valves, and separators for collecting and recycling the abrasive media.

3. Ventilation System: The ventilation system comprises exhaust fans, ductwork, air filtration units, and possibly makeup air units to ensure proper airflow and contaminant removal within the booth.

4. Blasting Equipment: Various types of blasting equipment, such as blast nozzles, blast pots, blast cabinets, or blast rooms, are installed within the booth to deliver abrasive media onto the surface of the workpieces.

5. Lighting Fixtures: High-intensity lighting fixtures, often equipped with protective covers or shields, are installed throughout the booth to provide adequate illumination of the work area.

6. Control Panel: The control panel or operator interface houses electrical components, control devices, and instrumentation for monitoring and controlling the blasting process.

7. Safety Equipment: Safety equipment such as blast curtains, blast shields, hearing protection, and respiratory protection may be provided to ensure operator safety and compliance with safety standards.

Applications of Shot Blasting Booth

1. Surface Preparation: Shot blasting booths are commonly used for the surface preparation of metal parts, components, and structures before coating, painting, or welding. They remove rust, scale, mill scale, paint, and other contaminants to achieve a clean, uniform surface finish.

2. Cleaning and Descaling: Shot blasting booths are used for cleaning and descaling applications in industries such as automotive, aerospace, shipbuilding, and manufacturing. They remove rust, corrosion, scale, and oxide layers from metal surfaces to restore their original condition.

3. Deburring and Deflashing: Shot blasting booths are employed for deburring and deflashing operations, removing burrs, sharp edges, and excess material from machined or cast components to improve dimensional accuracy and surface quality.

4. Peening and Stress Relief: Shot blasting booths are utilized for shot peening and stress relief applications in the aerospace, automotive, and manufacturing sectors. They impart compressive stress on metal surfaces to improve fatigue resistance, strength, and durability.

5. Remanufacturing and Refurbishing: Shot blasting booths are used in remanufacturing and refurbishing facilities to restore worn or damaged components, machinery, and equipment to like-new condition by removing surface defects and coatings.

6. Concrete and Stone Cleaning: Shot blasting booths are employed for cleaning and surface preparation of concrete floors, bridges, highways, and stone surfaces in construction, infrastructure, and maintenance projects.

Conclusion

Shot blasting booths are essential equipment for the cleaning, surface preparation, and finishing of workpieces in various industries and applications. With their enclosed design, ventilation systems, abrasive recovery systems, and blasting equipment, these booths provide a controlled environment for efficient and effective abrasive blasting operations. By removing contaminants, scale, rust, and old coatings from metal and other surfaces, shot blasting booths help improve product quality, prolong equipment life, and enhance productivity in manufacturing, maintenance, and refurbishing processes.
