Functions of Cutter Suction Dredger

2023-12-15

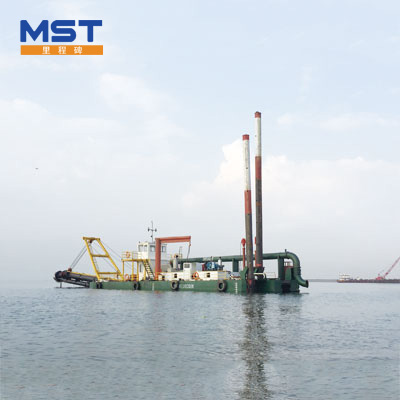

A Cutter Suction Dredger (CSD) is a specialized vessel designed for dredging activities, which involve the removal of sediment, debris, or other materials from the bottom of bodies of water. The primary function of a Cutter Suction Dredger is to perform dredging operations efficiently. Here are the key functions and components of a Cutter Suction Dredger:

1. Dredging Head or Cutter Head:

  - The dredging head is a cutting tool located at the front of the dredger. It consists of rotating blades or a cutter ladder with cutting teeth.

  - The cutter head is responsible for breaking up and loosening the seabed or riverbed material, making it easier to suction and transport.

2. Suction Pipe and Pump System:

  - A suction pipe is connected to the cutter head and extends to the dredge pump.

  - The dredge pump creates a vacuum, drawing in the loosened material through the suction pipe. This material is then pumped as slurry (a mixture of water and sediment) to a designated discharge point.

3. Dredge Pump:

  - The dredge pump is a crucial component that provides the suction force needed to lift the sediment from the seabed or riverbed.

  - Depending on the design, Cutter Suction Dredgers may have one or more dredge pumps.

4. Cutter Drive and Positioning System:

  - The cutter head is typically powered by a hydraulic or electric drive system.

  - A positioning system allows the operator to control the depth and position of the cutter head, ensuring efficient dredging operations.

5. Swing System:

  - Some Cutter Suction Dredgers are equipped with a swing system that allows the dredger to rotate around its spud pole or anchor point, enabling it to cover a larger area without repositioning.

6. Spud or Anchoring System:

  - Cutter Suction Dredgers often use spuds or anchors to stabilize the vessel during dredging operations. These can be raised or lowered to adjust the dredging depth.

7. Control Cabin:

  - The dredger is operated and controlled from a cabin, where the operator can manage the cutter head, suction pipe, and other dredging functions.

8. Pipelines and Disposal:

  - The slurry transported from the dredge pump is often pumped through pipelines to a designated disposal area, such as a containment area or an area where the material can be beneficially used for land reclamation.

9. Navigation and Positioning System:

  - A navigation system, often combined with GPS technology, helps the operator accurately position the dredger and control its movement during dredging operations.

The functions of a Cutter Suction Dredger make it a versatile tool for various applications, including harbor maintenance, channel dredging, land reclamation, and environmental remediation. The efficiency of these dredgers makes them valuable for maintaining waterways and ensuring safe navigation.
